BIOL4585

Connecting to a command-line

Overview

Humans don’t natively speak in binary, meaning there ultimately must be a translator between you and the computer’s operating system. The general name given to the program that accepts your commands and translates it for the computer is a shell. The shell can be thought of the outermost layer of the computer’s operating system that you can see; the actual work is done under the hood, hidden inside.

You are probably accustomed to a graphical user interface (or GUI, pronounced gooey) for interacting with your computer. GUIs have menus and icons that you can click on to perform tasks on your computer. Macs, Windows computers, and smartphones are all machines with graphical user interfaces.

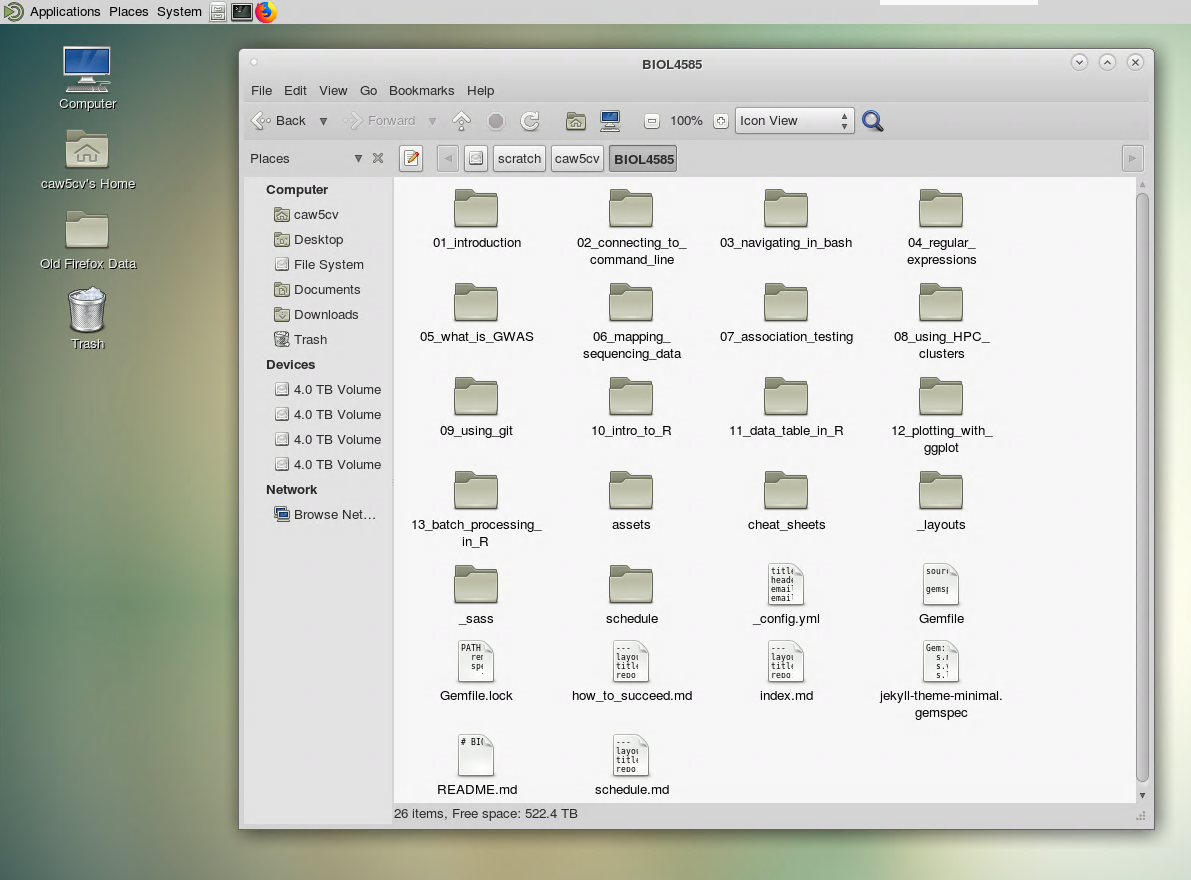

A graphical user interface or GUI

The alternative to a GUI is a Command-line interface (CLI, or commonly called command-line for short). This is an interface for communicating with a computer via text input–no clickable menus or buttons!

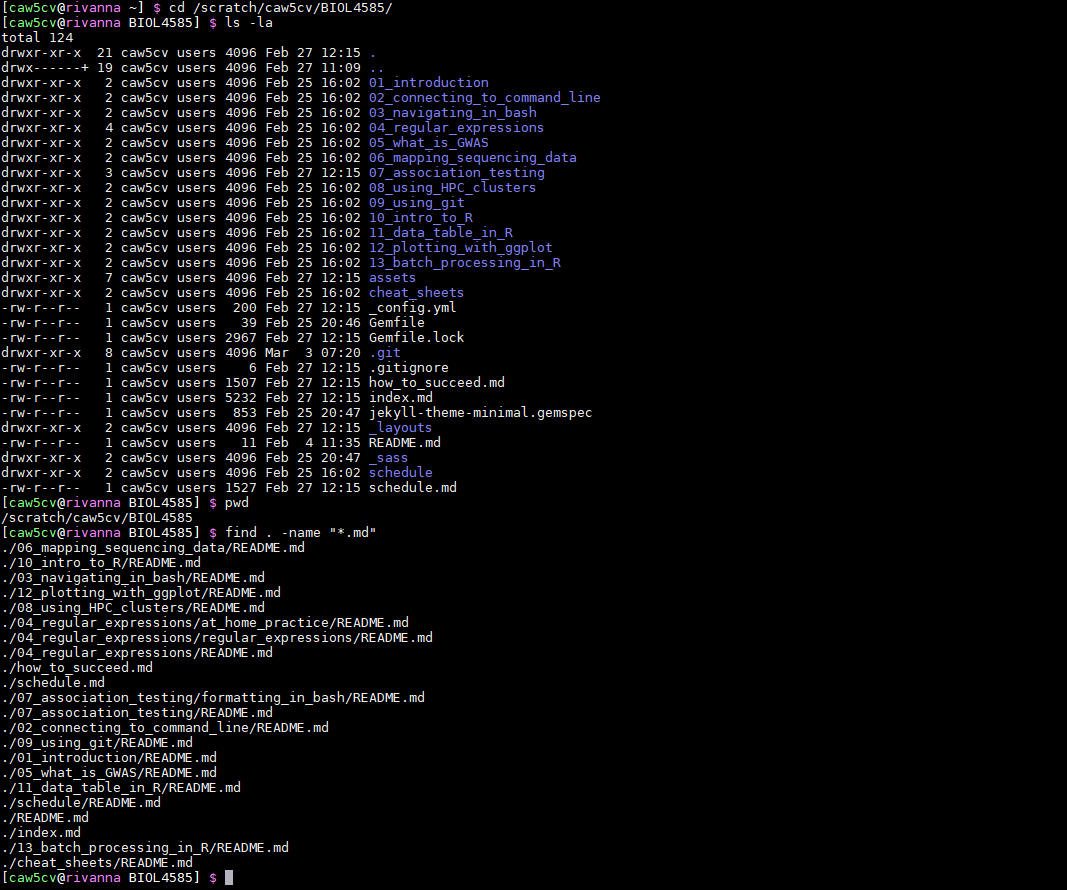

A bash command-line interface, common to linux operating systems

Notice that the command cd was used to changed directories until in a desired location, and ls then printed a list of files and folders. The above two images are showing the same information, one with a GUI, the other on the command-line.

While a text-only interface may sound clunky to use at first, it enables a level of automation that is unrivaled by GUIs. Imagine that you wanted to rename one thousand files by appending some text to the file names. Doing this by hand would be tedious, but the task can be automated by writing a generic set of instructions, completing the task within seconds on a command-line interface.

To recap new vocabulary:

shell: a program that accepts user input and translates it into tasks to run on a computer

GUI: a graphical user interface–a shell with visual menus, icons and/or buttons

CLI: a command-line interface–a shell where commands are entered as text input

bash: a specific command-line interface shell, commonly used in Linux operating systems

Linux: a family of free operating systems, like Ubuntu and Fedora, that heavily lean on command-line use

The Rivanna computing clusters

While Linux operating systems are free/open source and you could install it on your own computer, but we’ll make it even easier. You can access a Linux environment (via a bash shell) on Rivanna, UVA’s High-Performance Computing (HPC) system. Rivanna is a network of resources (hard drives, memory, CPUs, etc) that can be accessed remotely. Rivanna is used by researchers as a platform for high-throughput computing chores, such as large-scale data analysis and image processing. In this guide, will first learn how to access and communicate with Rivanna.

A note on passwords: If you are used to only accessing UVA resources via netbadge and do not remember your password, you may need to reset it. See here for instructions.

Prerequesite: Install and enable the UVA Anywhere VPN.

While connected to Wi-Fi on-grounds, your computer is identified as being “on the UVA network” and you can access Rivanna by default. Any time you are not on-grounds, you need to use a Virtual Private Network (VPN) in order to access Rivanna. Detailed instructions for Mac and Windows users can be found here. Note for Linux users: while UVA’s VPN is technically described as ‘unsupported’ for Linux, see openssl instructions described here.

Accessing Rivanna via GUI: FastX

All FastX requires is a supported internet browser and an internet connection on the UVA network (or VPN). Instructions for launching a FastX session can be found here. Briefly familiarize yourself with the contents of the top menu bar, e.g. application browser, file browser (file cabinet), terminal, and firefox icons. Notice you can access your home directory folder on the desktop. You can open a bash shell within FastX by clicking on the terminal icon (computer monitor with >_ on the screen).

Accessing Rivanna via CLI: SSH

SSH, or secure shell, is the most widely used method for accessing Linux systems remotely.

After you initiate the connection, you will be prompted for your password. Be confident that your keys are being entered, even though you don’t see any * characters as you type. Hit enter after typing all of your password.
